INTRODUCING THE ALL NEW HEADER HUNTER

<

INTRODUCING THE ALL NEW HEADER HUNTER <

Technical Specifications

    • 42,000 L

    • Holds 34 tonne’s of wheat

    • Tare: 10.4t

    • Gross: 45t

    • Height 3.7m

    • Width: 3.65m

    • Length 10.3m

    • Discharge height: 4.5m

  • Bin is constructed from cold forged steel

    • Chassis: 12mm

    • Side walls: 5mm

    • Front/Back walls: 6mm

    • Dual walking beam axels

    • 800/65-R32 tyres

    • Hydraulic drum brakes on rear axel

    • Unload Auger: 20”

    • Cross Auger: 20”

    • 540 PTO Driven

    • 450L capacity

    • 6hp twin impeller pressure pump

    • 20m hose

  • 50/50 Bin split which can hold

    • Aprox 17t wheat

    • Aprox 20t fert

    Has lever operated full length clean out doors to prevent contamination

  • HD 3 camera kit

    • Reversing camera

    • Unloading auger camera

    • Bin level camera

    LED Lighting

    • Auger spout flood light

    Optional*

    • Bluetooth Agrimatic weigh cells

    • Grain sample chute

    • Rear access ladder

    • Maintenance walkway inside bin

    • 4 large bin windows

    • UV resistant roll tarp

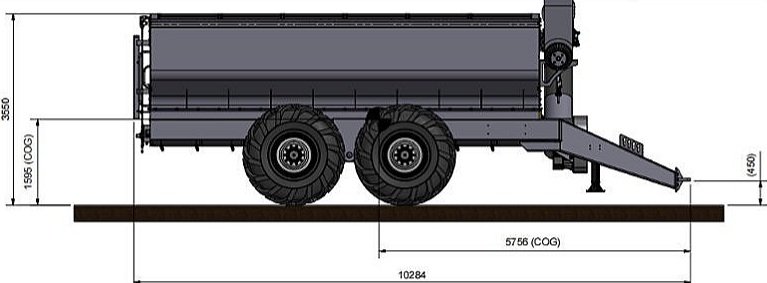

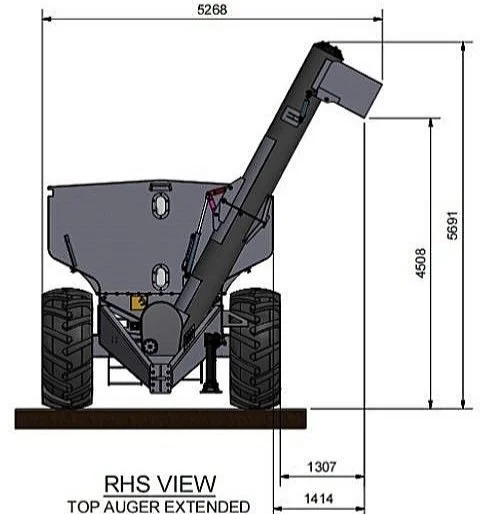

DIMENSIONS

Click through the white markers to explore the bins features!

Features

The header Hunter is equipped with:

  • Hydraulic drum brakes

  • Hydraulic jack stand

  • Hydraulically adjustable auger spout

  • 3 HD Cameras

  • LED Light pack

  • Rear access door and walkway

  • 2 grain sample chutes

  • Full length clean out doors

  • 450L firefighter unit

  • 20” unloading and cross augers

  • 4 large bin windows

  • Seed and Super Kit

  • 800-65 R32 radial tyres

  • UV resistant roll tarp

  • Tool tray

  • Rear ladder

  • Oversize signage, flags and beacons

  • Optional: Bluetooth weigh cells
